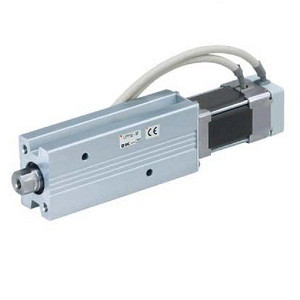

SMC LEPS10K-25-S3C918 Miniature Slide Table Type

SMC LEPS10K-25-S3C918 LEPS Series Electric Actuator Miniature Slide Table Type Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC
SKU:
LEPS10K-25-S3C918
Availability:
Factory stock
$1,190.00
Condition:
New
Current Stock:
Description

LEPS Series Electric Actuator Miniature Slide Table Type Step Motor (Servo 24 VDC) Applicable To The JXC Series

  • Compact and lightweight; W 21 mm x H 41 mm x L 138.6 mm, weight 290 g;
  • Max. pushing force: 50 N;
  • Positioning repeatability: ±0.05 mm;
  • Possible to set position, speed and force (64 points);
  • Max. speed (Horizontal): 350 mm/s;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, LECP6(Manufacture Discontinued), LECPMJ(Manufacture Discontinued)
