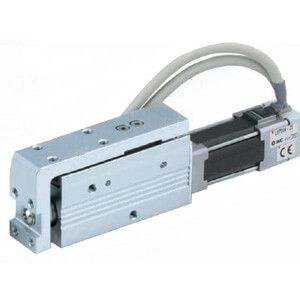

SMC LEPS6K-50-R8C917 electric actuator miniature slide table type

SMC LEPS6K-50-R8C917 LEPS Series Electric Actuator Miniature Slide Table Type Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC
SKU:
LEPS6K-50-R8C917
$1,390.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEPS Series Electric Actuator Miniature Slide Table Type Step Motor (Servo 24 VDC) Applicable To The JXC Series

  • Compact and lightweight; W 21 mm x H 41 mm x L 138.6 mm, weight 290 g;
  • Max. pushing force: 50 N;
  • Positioning repeatability: ±0.05 mm;
  • Possible to set position, speed and force (64 points);
  • Max. speed (Horizontal): 350 mm/s;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, LECP6(Manufacture Discontinued), LECPMJ(Manufacture Discontinued)
    • Additional Information
    Size:
    6
    Motor size:
    Basic Style
    Lead Screw Type:
    LEPS6:4 mm,LEPS10:5 mm
    Stroke:
    Stroke 50 mm
    Motor Cable Entry:
    Top Entry
    Actuator Cable Type/Length:
    Robotic Cable 8 m
    Communication Protocol:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis Specification:Standard
    Mounting:
    Screw Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Plug Connector
