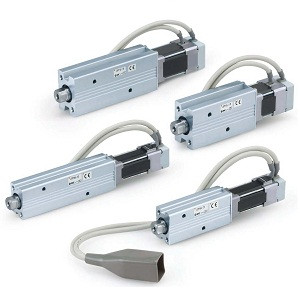

SMC LEPY10J-75L-S1CP17 LEPY Series Electric Actuator Miniature Rod Type Step Motor (Servo 24 VDC) Applicable To The JXC series

SMC LEPY10J-75L-S1CP17 LEPY Series Electric Actuator Miniature Rod Type Step Motor (Servo 24 VDC) Applicable To The JXC series

SMC
SKU:
LEPY10J-75L-S1CP17
Availability:
Factory stock
$1,180.00
Condition:
New
Current Stock:
Description

LEPY Series Electric Actuator Miniature Rod Type Step Motor (Servo 24 VDC) Applicable To The JXC series

  • Compact and lightweight; W 20.5 mm x H 30 mm x L 125.6 mm, weight 240 g;
  • Max. pushing force: 50 N;
  • Positioning repeatability: ±0.05 mm;
  • Possible to set position, speed and force (64 points);
  • Max. speed (Horizontal): 350 mm/s;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, LECP6(Manufacture Discontinued), LECPMJ(Manufacture Discontinued)
