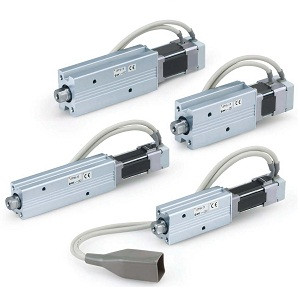

SMC LEPY10LK-50U-C917 LEPY Series Electric Actuator Miniature Rod Type Step Motor (Servo 24 VDC) Applicable To The JXC series
SMC
$970.00
The SMC LEPY10LK-50U-C917 is a high-performance electric actuator from the LEPY Series, designed for precision and efficiency in compact spaces. This miniature rod type step motor, operating on a servo 24 VDC, is engineered to integrate seamlessly with the JXC series controllers, including models JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the discontinued LECP6 and LECPMJ.
With dimensions of W 20.5 mm x H 30 mm x L 125.6 mm and a lightweight design at just 240 grams, this actuator is ideal for applications where space and weight are critical factors. It delivers a maximum pushing force of 50 N, ensuring robust performance in demanding environments. The actuator's positioning repeatability of ±0.05 mm guarantees precision in operations, making it suitable for tasks requiring high accuracy.
Engineers will appreciate the actuator's capability to set position, speed, and force across 64 programmable points, offering flexibility and control in various applications. The maximum horizontal speed of 350 mm/s enhances productivity by reducing cycle times.
This actuator is a reliable choice for professionals seeking a compact yet powerful solution for automation tasks, ensuring seamless integration and optimal performance in manufacturing and engineering applications.
- Size:
- 10
- Motor size:
- Compact
- Lead Screw Type:
- LEPY6:4mm,LEPY10:5mm
- Stroke:
- Stroke 50 mm
- Motor Cable Entry:
- Bottom Entry
- Actuator Cable Type/Length:
- Without Cable
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis Specification:Standard
- Mounting:
- Screw Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
