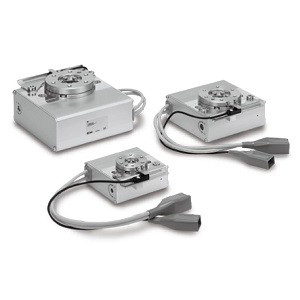

SMC LER10J-1-S3C917 LER Series Electric Rotary Table Step Motor (Servo 24 VDC) Continuous Rotation Specification Applicable To The JXC Series

The SMC LER10J-1-S3C917 LER Series Electric Rotary Table Step Motor is engineered for precision and efficiency, making it an ideal choice for advanced manufacturing applications. This servo-driven rotary table operates on a 24 VDC power supply and is specifically designed to integrate seamlessly with the JXC Series controllers, ensuring optimal performance and control. Key features include a versatile rotation angle capability of 320° (310° for the LER10), 180°, and 90°, allowing for flexible application in various industrial settings. The low-profile design, with a height of just 42 mm, facilitates space-saving installations without compromising on functionality. The built-in step motor ensures shock-less and high-speed actuation, achieving a maximum speed of 420°/sec (7.33 rad/sec) and a maximum acceleration/deceleration of 3,000°/sec² (52.36 rad/sec²). Engineers will appreciate the ability to set speed, acceleration/deceleration, and position with precision, supporting up to 64 programmable points. This feature, combined with the energy-saving automatic 40% power reduction after the table has stopped, enhances operational efficiency and reduces energy consumption. The LER10J-1-S3C917 is designed for ease of use, with data settings requiring only two parameters: position and speed. The actuator comes pre-configured with the controller, simplifying setup and reducing installation time. Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECPA, this rotary table offers broad integration possibilities. Optimize your manufacturing processes with the SMC LER10J-1-S3C917, a robust solution for precise and efficient rotary motion control.
