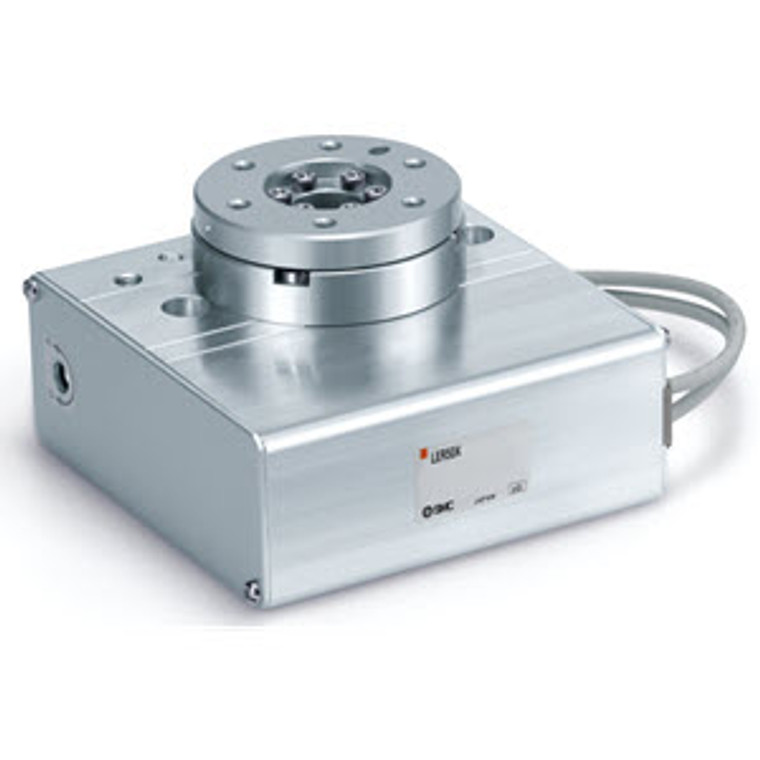

SMC LER50J-3-S3CE18 Electric Rotary Table

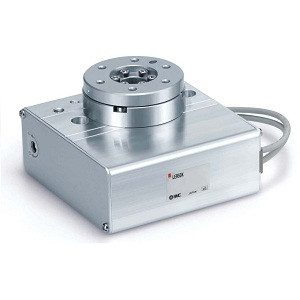

SMC LER50J-3-S3CE18 LER Series Electric Rotary Table Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC
SKU:
LER50J-3-S3CE18
Availability:
Factory stock
$2,140.00
Condition:
New
Current Stock:
Description

SMC LER50J-3-S3CE18 - LER Rotary Table, 50mm, Step

The SMC LER50J-3-S3CE18 - rotary, 50mm, step.

Key Features & Specifications

  • Step motor
  • Cross-roller bearing
  • Hollow center
  • Compact
  • Controller compatible
  • 50mm | Step

Typical Applications

Indexing and orientation.

Manufactured by SMC Corporation.

Additional Information
Table Accuracy:
Basic Style
Size:
50
Max. Rotating Torque:
Basic (LER10: 0.22N·m, LER30: 0.8N·m, LER50: 6.6N·m)
Rotation Angle:
External Stopper?90°
Motor Cable Entry:
Basic (Entry On The Right Side)
Actuator Cable Type/Length:
Standard Cable 3 m
Communication Protocol:
EtherCAT
Number Of Axes/Special Specification:
Number Of Axis:For Single Axis?Specification:Standard
Mounting:
DIN Rail Mounting
Communication Plug Connector I/O Cable:
Without Controller Or Without Plug Connector
