SMC LER50K-1 Electric Rotary Table
- SKU:
- LER50K-1
- Condition:
- New
- Table Accuracy::
- Basic
- Size::
- 50
- Max. Rotation Torque::
- 10 N*m
- Rotation Angle::
- 320??
- Cable Type/Length::
- w/o cable
- Controller/Driver Type::
- without controller/driver
- I/O Cable Length::
- w/o cable
- Controller/Driver Mounting::
- Screw mounting
Description

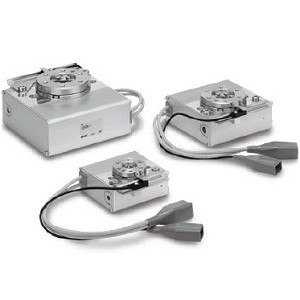

LER, Electric Rotary Table, Continuous Rotation
The LER rotary electric actuators feature a rotating worktable positioned above an enclosure for the motor and drivetrain. Three different motor/table sizes are available, with each size offering a basic and high torque variation. Additionally, each size offers four rotating angle options, including 90 , 180 , 310 / 320 , and continuously rotating.
- Body sizes: 10, 30, 50- Rotation angles: 360 continuous
- Maximum torque: 6.6 N??ç??m
- Positioning repeatability: 0.05 ( 0.01 at end with external stopper)
- Backlash: 0.5
