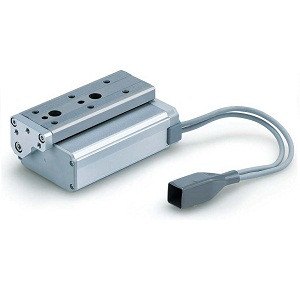

SMC LES16RK-30-R3C918 LES Series Electric Slide Table/Compact Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,585.00
The SMC LES16RK-30-R3C918 is a part of the LES Series Electric Slide Table, featuring a compact type step motor with a servo of 24 VDC, specifically designed for compatibility with the JXC Series. This innovative slide table offers a range of enhancements over previous models, including a reduced workpiece mounting surface height by up to 12%, allowing for a more compact setup. It also boasts an increased vertical work load capacity by up to 50%, making it ideal for more demanding applications.
Engineered for efficiency, this model is lightweight, with a weight reduction of up to 29%, and delivers a maximum pushing force of 180 N. It ensures precise operations with a positioning repeatability of ±0.05 mm. The LES16RK-30-R3C918 is designed to optimize cycle times, featuring a maximum acceleration/deceleration of 5,000 mm/S² and a maximum speed of 400 mm/s.
This electric slide table is compatible with a wide range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6. Note that some controllers, such as LECP6 and LECPMJ, have been discontinued. This product is an excellent choice for those seeking a reliable, high-performance solution for their automation needs.
- Size:
- 16
- Motor Mounting Position:
- Basic Type/R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4mm, Size16:5mm, Size25:8mm
- Stroke:
- Stroke 30mm
- Motor Option:
- Without Option
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type/Length:
- Robotic Cable 3m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
