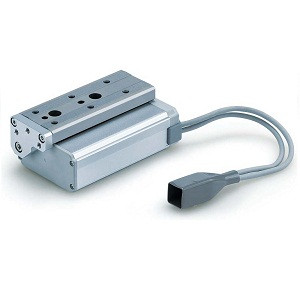

SMC LES16RK-30-S5C917 LES Series Electric Slide Table/Compact Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,510.00
The SMC LES16RK-30-S5C917 is a cutting-edge electric slide table from the LES Series, designed for precision and efficiency. This compact type step motor, operating at a servo voltage of 24 VDC, is perfectly compatible with the JXC Series controllers. It boasts a reduced workpiece mounting surface height, offering a compact design that is up to 12% smaller compared to the LESH model. The vertical work load capacity has been significantly increased by up to 50%, while the overall weight has been reduced by up to 29%, making it a lightweight yet powerful solution.
With a maximum pushing force of 180 N and positioning repeatability of ±0.05 mm, this electric slide table ensures precise and reliable performance. It is engineered to enhance productivity by reducing cycle time, thanks to its impressive maximum acceleration/deceleration of 5,000 mm/S² and a top speed of 400 mm/s. The LES16RK-30-S5C917 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models. This versatile and efficient electric slide table is ideal for applications requiring high precision and speed.
- Size:
- 16
- Motor Mounting Position:
- Basic Type/R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4mm, Size16:5mm, Size25:8mm
- Stroke:
- Stroke 30mm
- Motor Option:
- Without Option
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type/Length:
- Standard Cable 5m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- Screw Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
