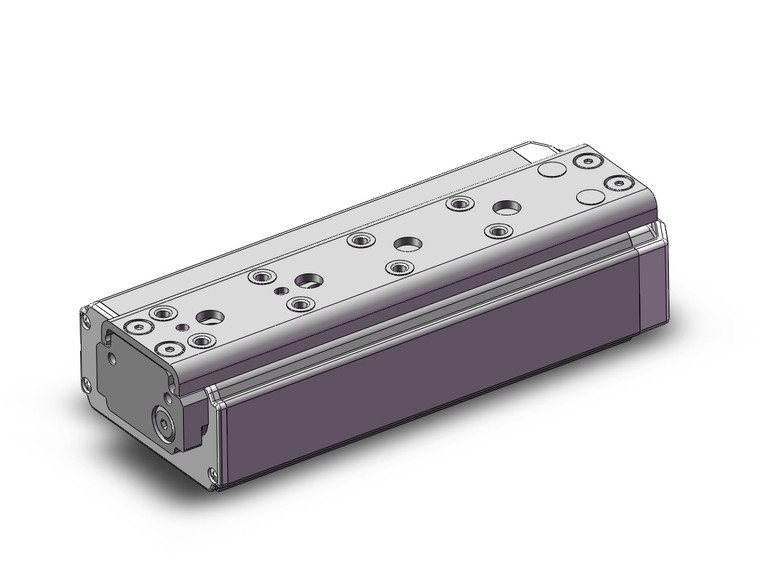

SMC LES16RK-75-S3AP1 LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,300.00
The SMC LES16RK-75-S3AP1 is a part of the LES-DC Series Electric Slide Table, designed for compact and efficient performance. This model features a servo motor operating at 24 VDC, ensuring precise and reliable motion control. Its compact design offers a workpiece mounting surface height reduced by up to 12% compared to the LESH model, making it ideal for space-constrained applications. The vertical work load capacity is increased by up to 50%, while the overall weight is reduced by up to 29%, enhancing its versatility and ease of use.
With a maximum pushing force of 180 N and positioning repeatability of ±0.05 mm, this electric slide table delivers exceptional accuracy and strength. It is engineered to reduce cycle time with a maximum acceleration/deceleration of 5,000 mm/s² and a top speed of 400 mm/s. The LES16RK-75-S3AP1 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. This product is an excellent choice for applications requiring high precision and efficiency in a compact form factor.
- Size:
- 16
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 75 mm
- Motor Option:
- Without Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 3 m
- Controller Type:
- LECPA Pulse Input Type PNP
- I/O Cable Length, Communication Plug:
- 1.5 m
- Controller Mounting:
- Screw Mounting
