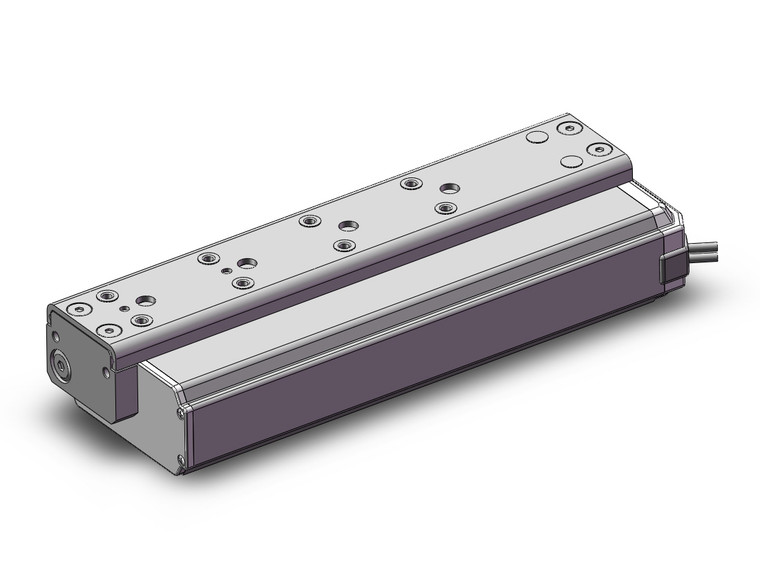

SMC LES25LJ-150 LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,250.00
Introducing the SMC LES25LJ-150, a part of the LES-DC Series Electric Slide Table/Compact Type, designed for precision and efficiency. This compact electric slide table is equipped with a 24 VDC servo motor, offering a remarkable reduction in workpiece mounting surface height by up to 12% compared to the LESH model. Experience enhanced performance with a vertical work load capacity increased by up to 50% and a lightweight design that is reduced by up to 29%. The LES25LJ-150 delivers a maximum pushing force of 180 N and ensures precise operations with a positioning repeatability of ±0.05 mm. Optimize your workflow with reduced cycle times, thanks to a maximum acceleration/deceleration of 5,000 mm/S² and a top speed of 400 mm/s. This versatile electric slide table is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6 (Manufacture Discontinued), as well as LECPMJ (Manufacture Discontinued). Elevate your automation solutions with the SMC LES25LJ-150, where compact design meets powerful performance.
- Size:
- 25
- Motor Mounting Position:
- Symmetric Type,L Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8::8 mm,Size16:10 mm,Size25:16 mm
- Stroke:
- Stroke 150 mm
- Motor Option:
- Without Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
