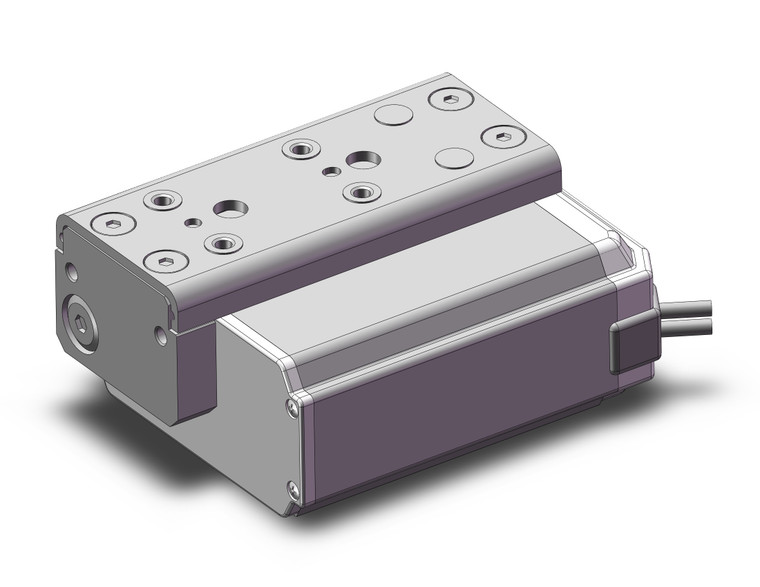

SMC LES25LK-30 LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,125.00
The SMC LES25LK-30 LES-DC Series Electric Slide Table is a compact and efficient solution for your automation needs. This servo motor-driven slide table operates on 24 VDC, offering a compact design that reduces the workpiece mounting surface height by up to 12% compared to the LESH model. It boasts an impressive increase in vertical work load capacity by up to 50%, while being lightweight with a reduction in weight by up to 29%. The slide table delivers a maximum pushing force of 180 N and ensures precise operations with a positioning repeatability of ±0.05 mm. Designed to enhance productivity, it allows for reduced cycle times with a maximum acceleration/deceleration of 5,000 mm/s² and a top speed of 400 mm/s. The LES25LK-30 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. This electric slide table is an ideal choice for applications requiring precision, speed, and compactness.
- Size:
- 25
- Motor Mounting Position:
- Symmetric Type,L Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 30 mm
- Motor Option:
- Without Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
