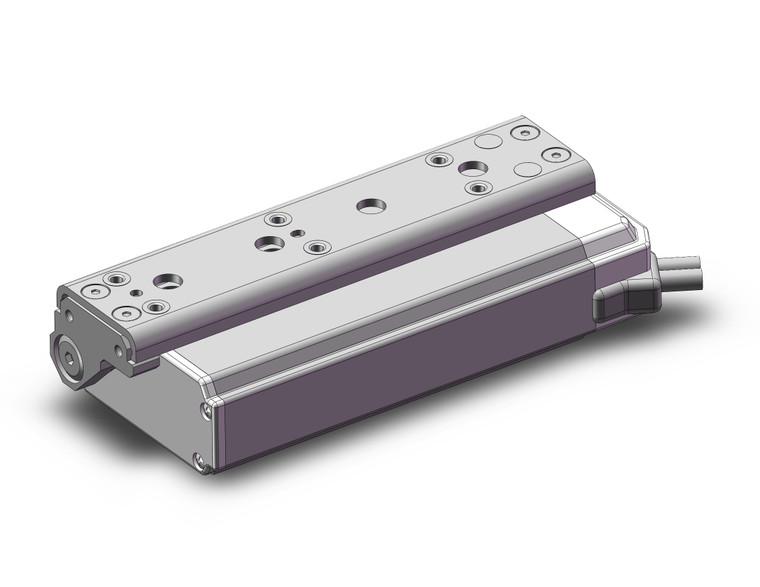

SMC LES8LAK-50-6PD LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,280.00
The SMC LES8LAK-50-6PD is a part of the LES-DC Series Electric Slide Table, designed for precision and efficiency in compact spaces. This model features a servo motor operating at 24 VDC, offering a compact design that reduces the workpiece mounting surface height by up to 12% compared to the LESH model. It supports a vertical work load increase of up to 50% and is lightweight, with a weight reduction of up to 29%. The electric slide table delivers a maximum pushing force of 180 N and ensures high precision with a positioning repeatability of ±0.05 mm. It is engineered to enhance productivity by reducing cycle time, boasting a maximum acceleration/deceleration of 5,000 mm/s² and a top speed of 400 mm/s. The LES8LAK-50-6PD is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models. This electric slide table is ideal for applications requiring precise and rapid positioning in a compact form factor.
- Size:
- 8
- Motor Mounting Position:
- Symmetric Type,L Type
- Motor Type:
- Servo motor (24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 50 mm
- Motor Option:
- Without Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- LECA6 Step Fata Input Type PNP (LECP6 Manufacture discontinued)
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- DIN Rail Mounting
