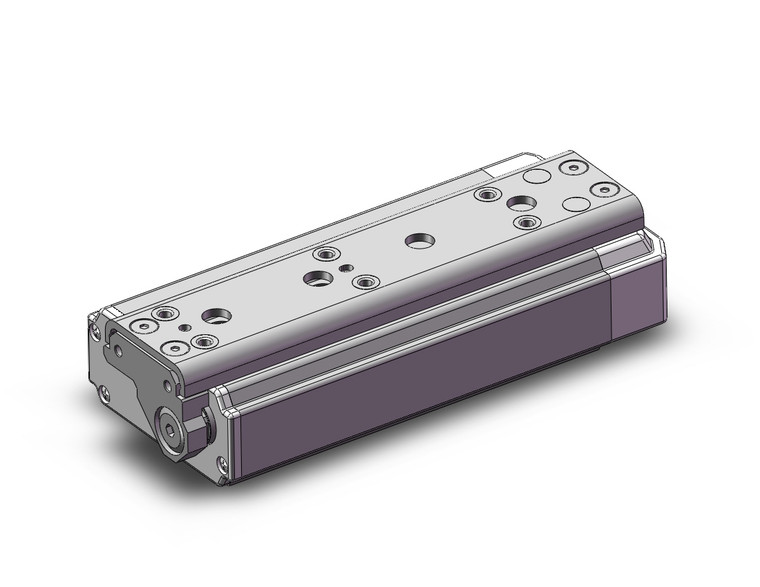

SMC LES8RAJ-50-R16P1 LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,455.00
The SMC LES8RAJ-50-R16P1 is a part of the LES-DC Series Electric Slide Table, designed for compact and efficient performance. This model features a servo motor operating at 24 VDC, offering a compact design that reduces the workpiece mounting surface height by up to 12% compared to the LESH model. It supports a vertical work load increase of up to 50% and is lightweight, with a weight reduction of up to 29%. The electric slide table delivers a maximum pushing force of 180 N and ensures precise positioning with a repeatability of ±0.05 mm. It is engineered to optimize cycle times with a maximum acceleration/deceleration of 5,000 mm/S² and a top speed of 400 mm/s. The LES8RAJ-50-R16P1 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models. This electric slide table is ideal for applications requiring precision, speed, and compactness.
- Size:
- 8
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Servo motor (24 VDC)
- Lead:
- Size8::8 mm,Size16:10 mm,Size25:16 mm
- Stroke:
- Stroke 50 mm
- Motor Option:
- Without Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 1.5 m
- Controller Type:
- LECA6 Step Fata Input Type PNP (LECP6 Manufacture discontinued)
- I/O Cable Length, Communication Plug:
- 1.5 m
- Controller Mounting:
- Screw Mounting
