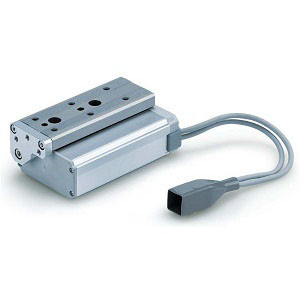

SMC LES8RAK-30-RB6P5D LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,730.00
The SMC LES8RAK-30-RB6P5D is a part of the LES-DC Series Electric Slide Table, designed for compact and efficient performance with a Servo Motor operating at 24 VDC. This model offers a significant reduction in workpiece mounting surface height by up to 12% compared to the LESH, making it ideal for space-constrained applications. It boasts an impressive increase in vertical work load capacity by up to 50%, while maintaining a lightweight design with a weight reduction of up to 29%. The electric slide table delivers a maximum pushing force of 180 N and ensures precise operations with a positioning repeatability of ±0.05 mm. It is engineered to enhance productivity by reducing cycle time, featuring a maximum acceleration/deceleration of 5,000 mm/S² and a top speed of 400 mm/s. The LES8RAK-30-RB6P5D is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models, ensuring versatile integration into various systems.
- Size:
- 8
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Servo motor (24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 30 mm
- Motor Option:
- Without Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 15 m
- Controller Type:
- LECA6 Step Fata Input Type PNP (LECP6 Manufacture discontinued)
- I/O Cable Length, Communication Plug:
- 5 m
- Controller Mounting:
- DIN Rail Mounting
