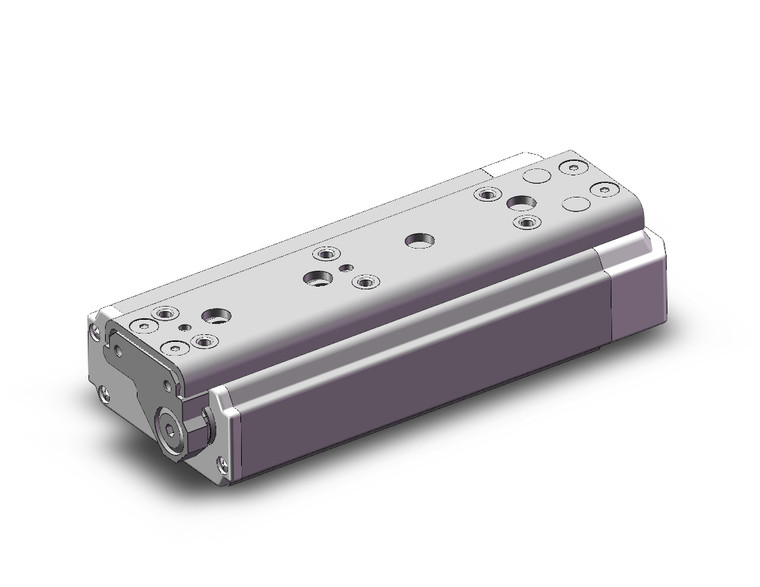

SMC LES8RK-50-S5C918 LES Series Electric Slide Table/Compact Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,450.00
The SMC LES8RK-50-S5C918 is a part of the LES Series Electric Slide Table, featuring a compact type step motor with a servo of 24 VDC, specifically designed for compatibility with the JXC Series. This innovative slide table offers a reduced workpiece mounting surface height by up to 12% compared to the LESH model, making it an ideal choice for space-constrained applications. It boasts an impressive increase in vertical work load capacity by up to 50%, while also being lightweight with a reduction of up to 29% in weight. The slide table delivers a maximum pushing force of 180 N and ensures precise operations with a positioning repeatability of ±0.05 mm. Designed to enhance productivity, it allows for reduced cycle times with a maximum acceleration/deceleration of 5,000 mm/S² and a maximum speed of 400 mm/s. The LES8RK-50-S5C918 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models like LECP6 and LECPMJ have been discontinued. This product is an excellent choice for those seeking efficiency and precision in their automation processes.
- Size:
- 8
- Motor Mounting Position:
- Basic Type/R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4mm, Size16:5mm, Size25:8mm
- Stroke:
- Stroke 50mm
- Motor Option:
- Without Option
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type/Length:
- Standard Cable 5m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
