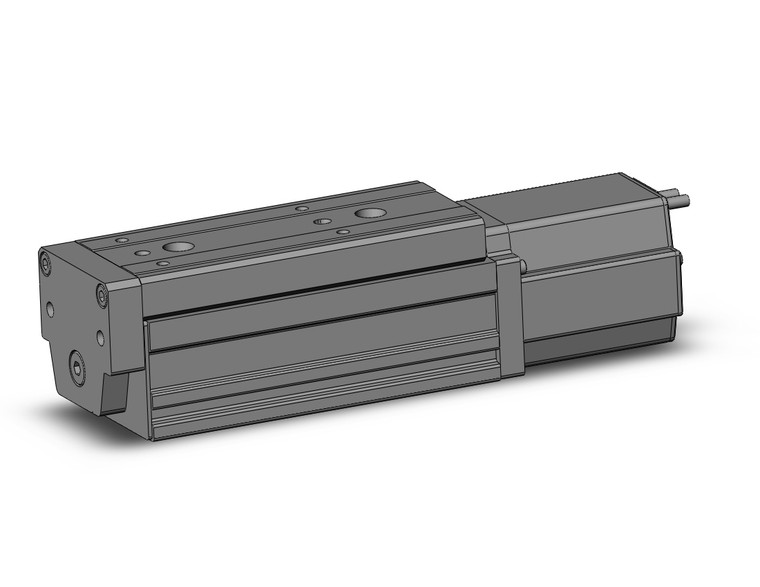

SMC LESH25DJ-50 LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,050.00
The SMC LESH25DJ-50 LESH-DC Series Electric Slide Table is designed for high rigidity and precision, making it an ideal choice for applications requiring reliable and accurate motion control. This electric slide table features a servo motor operating at 24 VDC, ensuring efficient performance. With its easy setting capability, users can quickly configure the system by adjusting only two parameters: position and speed. The actuator comes pre-configured with the controller, simplifying the setup process as they are sold together as a package.
The integration of the guide rail and table utilizes a recirculating linear guide, providing enhanced rigidity and precision. This design choice contributes to reduced cycle times, with a maximum acceleration and deceleration rate of 5,000 mm/S² and a top speed of 400 mm/s. The system is capable of exerting a maximum pushing force of 180 N, and it boasts a positioning repeatability of ±0.05 mm, ensuring consistent and accurate performance.
The LESH25DJ-50 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. This compatibility allows for flexible integration into existing systems, making it a versatile solution for various industrial applications.
- Size:
- 25
- Motor Mounting Position:
- Motor Straight,Type D Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8::8 mm,Size16:10 mm,Size25:16 mm
- Stroke:
- Stroke 50 mm
- Motor Option:
- Without Option
- Body Option:
- Without Option
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
