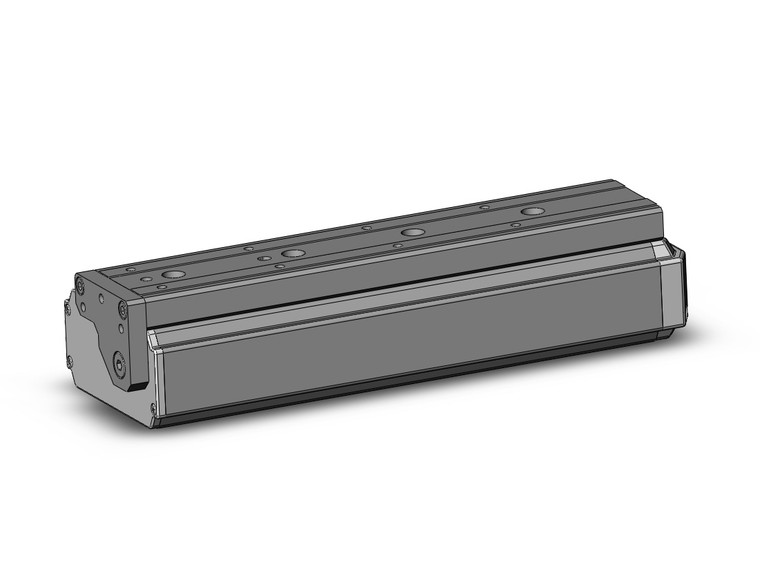

SMC LESH25RAJ-150-R56P5 LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$2,020.00
The SMC LESH25RAJ-150-R56P5 is a high-performance electric slide table from the LESH-DC Series, designed for applications requiring high rigidity and precision. This model features a 24 VDC servo motor, ensuring efficient and reliable operation.
Key features include:
- **Easy Setup**: Simplify your workflow with data settings that require only position and speed inputs. The actuator comes pre-configured with the controller, sold as a complete package for seamless integration.
- **Integrated Design**: The guide rail and table are combined into a single unit, utilizing a recirculating linear guide for enhanced rigidity and precision.
- **Optimized Performance**: Experience reduced cycle times with a maximum acceleration and deceleration of 5,000 mm/S² and a top speed of 400 mm/s.
- **Powerful Force**: Achieve a maximum pushing force of 180 N, suitable for demanding applications.
- **Precision Positioning**: Benefit from a positioning repeatability of ±0.05 mm, ensuring consistent and accurate results.
- **Controller Compatibility**: Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6 (note that LECP6 and LECPMJ are discontinued).
This electric slide table is ideal for industries that demand high precision and efficiency, making it a valuable addition to your automation solutions.
- Size:
- 25
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Servo motor (24 VDC)
- Lead:
- Size8::8 mm,Size16:10 mm,Size25:16 mm
- Stroke:
- Stroke 150 mm
- Motor Option:
- Without Option
- Body Option:
- Without Option
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 5 m
- Controller Type:
- LECA6 Step Fata Input Type PNP (LECP6 Manufacture discontinued)
- I/O Cable Length, Communication Plug:
- 5 m
- Controller Mounting:
- Screw Mounting
