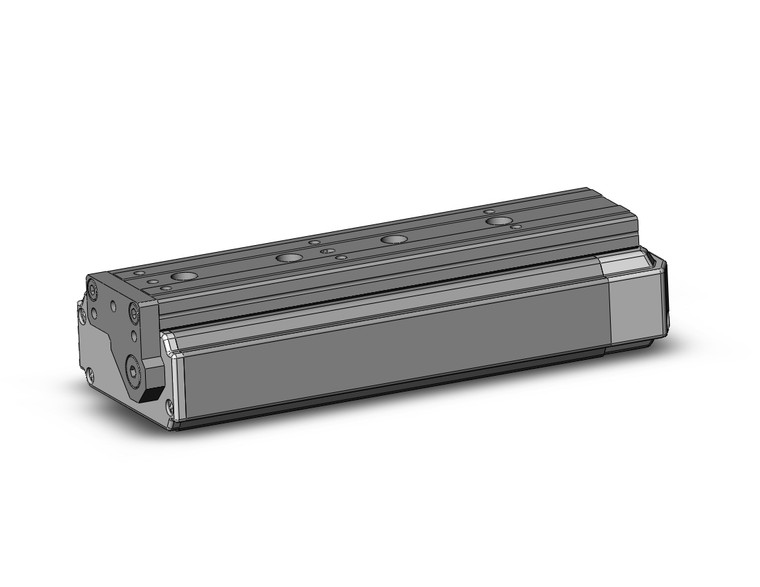

SMC LESH8RJ-75B-S3 LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,260.00
The SMC LESH8RJ-75B-S3 LESH-DC Series Electric Slide Table is designed for high rigidity and precision, making it an ideal choice for applications requiring reliable and accurate motion control. This electric slide table features a servo motor operating at 24 VDC, ensuring efficient performance.
Key features include easy setup with only two parameters to configure: position and speed. The controller comes pre-set with actuator data, simplifying the integration process as both the actuator and controller are sold as a package. The integration of the guide rail and table utilizes a recirculating linear guide, providing enhanced rigidity and precision.
This model is engineered to reduce cycle times with a maximum acceleration and deceleration of 5,000 mm/S² and a top speed of 400 mm/s. It offers a maximum pushing force of 180 N and boasts a positioning repeatability of ±0.05 mm, ensuring consistent and reliable operation.
The LESH8RJ-75B-S3 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6. Note that some controllers, such as LECP6 and LECPMJ, have been discontinued. This electric slide table is a robust solution for demanding industrial applications, offering high performance and ease of use.
- Size:
- 8
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8::8 mm,Size16:10 mm,Size25:16 mm
- Stroke:
- Stroke 75 mm
- Motor Option:
- With Lock
- Body Option:
- Without Option
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Option
- Actuator Cable Length:
- 3 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
