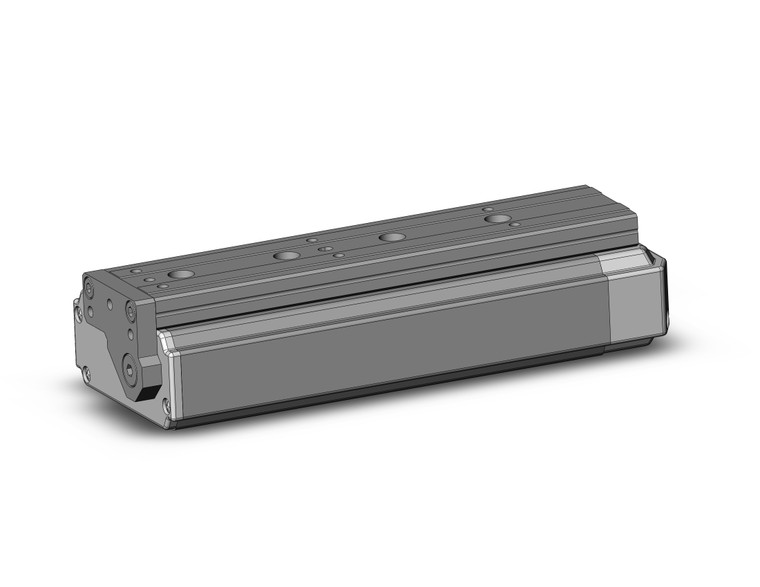

SMC LESH8RK-75-R3 Electric Slide Table/High Rigidity Type

SMC LESH8RK-75-R3 LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)

SMC
SKU:
LESH8RK-75-R3
Availability:
Factory Stock
$1,080.00
Condition:
New
Current Stock:
Description
The SMC LESH8RK-75-R3 LESH-DC Series Electric Slide Table is designed for high rigidity and precision, featuring a servo motor operating at 24 VDC. This advanced electric slide table simplifies setup with easy data input for position and speed, as the controller comes pre-configured with actuator data. The integration of a recirculating linear guide and table ensures high rigidity and precision, making it ideal for demanding applications. Experience reduced cycle times with a maximum acceleration and deceleration of 5,000 mm/S² and a top speed of 400 mm/s. The slide table offers a maximum pushing force of 180 N and boasts a positioning repeatability of ±0.05 mm. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. This product is perfect for applications requiring high precision and efficiency.
Additional Information
Size:
8
Motor Mounting Position:
Standard Type,R Type
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size8:4 mm,Size16:5 mm,Size25:8 mm
Stroke:
Stroke 75 mm
Motor Option:
Without Option
Body Option:
Without Option
Mounting Style:
Without Side Holder
Actuator Cable Type:
Robotic Cable (Flexible Cable)
Actuator Cable Length:
3 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
