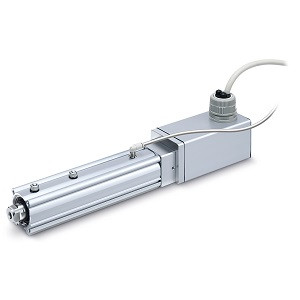

SMC LEY32DB-200B-R8-X7 LEY-X7 Series Electric Actuator/Rod Type Step Motor (Servo/24 VDC) Servo Motor (24 VDC) Dust-tight/Immersion-proof (IP67 Equivalent) Applicable To The LEC Series Controller

SMC LEY32DB-200B-R8-X7 LEY-X7 Series Electric Actuator/Rod Type Step Motor (Servo/24 VDC) Servo Motor (24 VDC) Dust-tight/Immersion-proof (IP67 Equivalent) Applicable To The LEC Series Controller

SMC
SKU:
LEY32DB-200B-R8-X7
Availability:
Contact us to confirm availability and lead times.
$2,450.00
Condition:
New
Current Stock:
Description

LEY-X7 Series Electric Actuator/Rod Type Step Motor (Servo/24 VDC) Servo Motor (24 VDC) Dust-tight/Immersion-proof (IP67 Equivalent) Applicable To The LEC Series Controller

  • PEnclosure: IP67 equivalent;
  • PMax. stroke: 500 mm (For sizes 32 and 40)
    • Additional Information
    Size:
    32
    Motor Mounting Position:
    In-line
    Motor Type:
    Step Motor (Servo/24 VDC)
    Lead:
    LEY25:6 mm,LEY32/40:8 mm
    Stroke:
    Stroke 200 mm
    Motor Option:
    With Lock
    Rod End Thread:
    Rod End Female Thread
    Mounting:
    Ends Tapped/Body Bottom Tapped
    Actuator Cable Type/Length:
    Robotic Cable 8 m
    Communication Protocol:
    Without Controller
    I/O Cable Length, Communication Plug:
    Without Cable, Without Communication Plug Connector
    Controller Mounting:
    Screw Mounting
    Made To Order:
    Dust-tight/Immersion-proof
