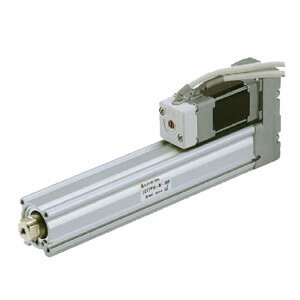

SMC LEY40C-30BL LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)

The SMC LEY40C-30BL Electric Actuator from the LEY Series is engineered for precision and versatility in industrial applications. This rod-type step motor, powered by a 24 VDC servo motor, is designed to deliver exceptional performance with a maximum stroke length of 500 mm. Its robust construction supports direct mounting in three directions and offers three types of bracket mounting, providing flexibility in installation. Engineered for precision, the LEY40C-30BL features a positioning repeatability of ±0.02 mm, ensuring high accuracy in operations. The actuator supports both positioning and pushing control, allowing it to maintain pressure against a workpiece when required. With speed control and the ability to handle up to 64 positioning points, this actuator is ideal for complex automation tasks. The LEY40C-30BL is built to withstand challenging environments, boasting a dust and drip-proof IP65 rating. It is compatible with a range of controllers, including JXC51, JXC61, and others, ensuring seamless integration into existing systems. For enhanced performance, the actuator supports high-speed transfer and acceleration up to 5,000 mm/s², powered by a high-output motor available in 100, 200, or 400 W variants. This actuator is equipped with an internal absolute encoder and supports pulse input, making it suitable for applications requiring precise motion control. Compatible drivers include LECSA, LECSB(-T), and LECSS, among others, providing a wide range of options for system configuration. Optimize your manufacturing processes with the SMC LEY40C-30BL Electric Actuator, designed for reliability and efficiency in demanding industrial environments.
