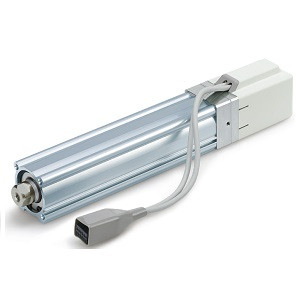

SMC LEY40EC-200W LEY-E Series Electric Actuator/Rod Type Battery-less Absolute Encoder

The SMC LEY40EC-200W LEY-E Series Electric Actuator with a Rod Type Battery-less Absolute Encoder is engineered for precision and efficiency in industrial automation applications. This advanced actuator is designed to seamlessly restart from the last stop position, ensuring minimal downtime and enhanced productivity. The innovative battery-less absolute encoder retains position information even when the power supply is interrupted, eliminating the need for a return to origin operation upon power recovery. This feature significantly reduces maintenance requirements, as there is no need to manage or replace batteries. With a long stroke capability of up to 500 mm, the LEY40EC-200W offers versatile installation options, including direct mounting in three directions and bracket mounting in three types. The actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, and JXCM1, providing flexibility in system integration. Engineers can select either positioning or pushing control, allowing the actuator to hold its position with the rod exerting force on a workpiece, enhancing application versatility. The LEY40EC-200W boasts a positioning repeatability of ±0.02 mm or less, ensuring high precision in demanding manufacturing environments. Additionally, the option to mount an auto switch further enhances its functionality. This actuator is an ideal choice for engineers seeking a reliable, low-maintenance solution for precise motion control in automated systems.
