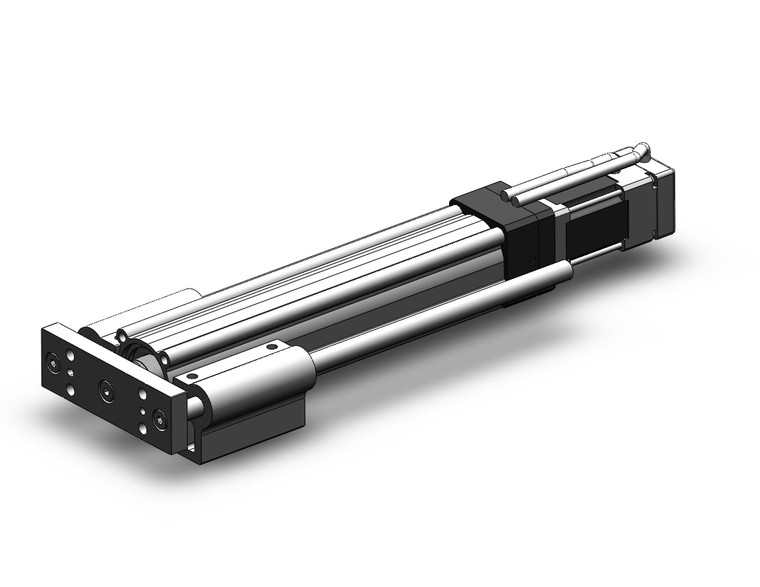

SMC LEYG16LDC-100 LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG16LDC-100 is a cutting-edge electric actuator from the LEYG Series, designed with a guide rod type step motor and a 24 VDC servo motor. This actuator is engineered for precision and efficiency, featuring a compact integration of guide rods that provide exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, particularly in size 25 with a 100-stroke configuration. This versatile actuator is compatible with both sliding and ball bushing bearings, making it suitable for handling moment loads and incorporating stoppers when using sliding bearings. It offers advanced speed control and positioning capabilities, supporting up to 64 distinct points. Users can select between positioning and pushing control, with the ability to maintain the actuator's position when the rod is in contact with a workpiece. The positioning repeatability is impressively precise, at ±0.02 mm or less. The LEYG16LDC-100 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The series also features a high output AC servo motor, available in 100/200 W, which enhances high-speed transfer capabilities and supports high acceleration and deceleration up to 5,000mm/S². It is equipped with an internal absolute encoder and supports pulse input types. For driver compatibility, the actuator works with LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY models, with some discontinued options like LECSB-S, LECSC-S, and LECSS-S. The SMC LEYG16LDC-100 is an ideal choice for applications requiring precise control, high-speed operations, and robust load handling.
