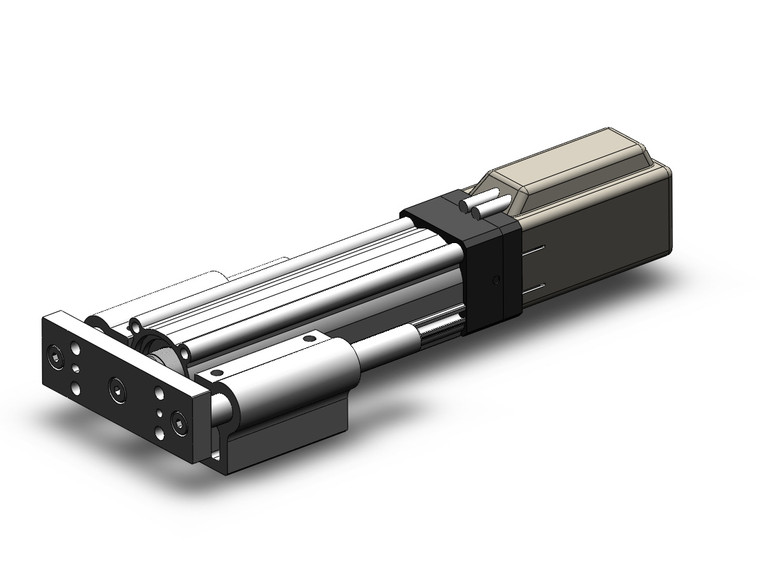

SMC LEYG16MDA-50C LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)
SMC
$680.00
The SMC LEYG16MDA-50C is a cutting-edge electric actuator from the LEYG Series, designed for precision and efficiency. This guide rod type step motor, powered by a 24 VDC servo motor, offers a compact integration of guide rods, ensuring exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, particularly in size 25 with a 100 stroke.
This actuator is compatible with both sliding and ball bushing bearings, making it versatile for various applications. It supports moment load and stopper functions when using a sliding bearing. With speed control and positioning capabilities of up to 64 points, the LEYG16MDA-50C allows for precise positioning and pushing control, even enabling the actuator to hold its position when pushing the rod against a workpiece. It offers impressive positioning repeatability of ±0.02 mm or less.
The LEYG Series also features a high output AC servo motor, available in 100/200 W, enhancing high-speed transfer abilities and supporting high acceleration/deceleration up to 5,000mm/S2. It includes a pulse input type and an internal absolute encoder for improved performance. Compatible with a range of controllers and drivers, including JXC51, JXC61, and LECSA, this actuator is a reliable choice for advanced automation needs.
- Size:
- 16
- Bearing Type:
- Slide Bearing
- Motor Mounting Position:
- Straight Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16:10mm,Size25:12mm,Size32/40:16mm
- Stroke:
- Stroke 50 mm
- Motor Option:
- With Motor Cover
- Guide Option:
- None
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
