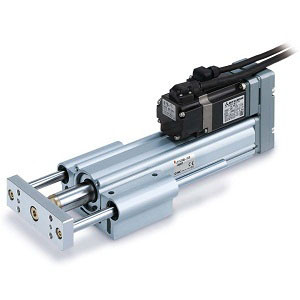

SMC LEYG32MS7A-200B-R5B2H LEYG-AC Series Electric Actuator/Guide Rod Type AC Servo Motor

SMC LEYG32MS7A-200B-R5B2H LEYG-AC Series Electric Actuator/Guide Rod Type AC Servo Motor

SMC
SKU:
LEYG32MS7A-200B-R5B2H
$3,540.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEYG-AC Series Electric Actuator/Guide Rod Type AC Servo Motor

Series LEYG Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Compact integration of guide rods; Achieves lateral load resistance and high non-rotating accuracy;
  • Lateral end load: 5 times more (compared with rod type, size 25 and;?100 stroke);
  • Compatible with sliding bearing and ball bushing bearing; Compatible with moment load and stopper (sliding bearing);
  • Speed control/Positioning: Max. 64 points;
  • Positioning and pushing control can be selected; Possible to hold the actuator when pushing the rod to a workpiece, etc;
  • Positioning repeatability: ±0.02 mm or less;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued);;Series LEYG AC Servo Motor;
  • High output motor (100/200 W);
  • Improved high speed transfer ability;
  • High acceleration/deceleration compatible (5,000mm/S2);
  • Pulse input type;
  • With internal absolute encoder;
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
    • Additional Information
    Accuracy:
    Basic
    Size:
    32
    Bearing Type:
    Slide Bearing
    Motor Mounting Position:
    Top Mounting
    Motor Type:
    AC Servo Motor(Absolute Encoder), Output 200W, Actuator Size 32 mm
    Lead:
    Size25:12 mm, Size32&Motor Mounting Position In-line:16 mm, Size32&Motor Mounting Position Parallel:20 mm
    Stroke:
    Stroke 200 mm
    Motor Option:
    With Lock
    Guide Option:
    None
    Cable Type:
    Robotic Cable(Flexible Cable)
    Cable Length:
    5 m
    Driver Type:
    LECSB2-T, Power Supply Voltage 200V To 240V
    I/O Cable Length:
    With Connector
    Made To Order:
    Standard
