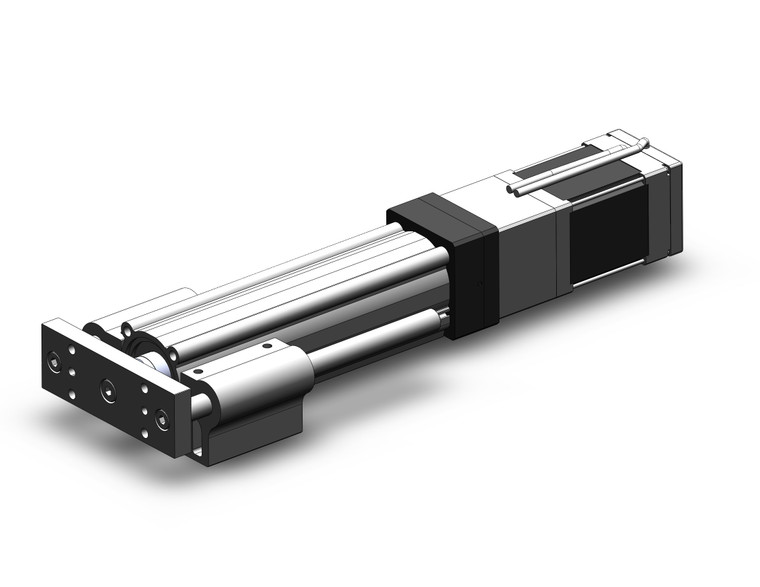

SMC LEYG40LDB-100B-R5C917 Guide Rod Type Electric Actuator

SMC LEYG40LDB-100B-R5C917 LEYG Series Electric Actuator/Guide Rod Type Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC
SKU:
LEYG40LDB-100B-R5C917
$2,205.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEYG Series Electric Actuator/Guide Rod Type Step Motor (Servo 24 VDC) Applicable To The JXC Series

Series LEYG Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Compact integration of guide rods; Achieves lateral load resistance and high non-rotating accuracy;
  • Lateral end load: 5 times more (compared with rod type, size 25 and; 100 stroke);
  • Compatible with sliding bearing and ball bushing bearing; Compatible with moment load and stopper (sliding bearing);
  • Speed control/Positioning: Max. 64 points;
  • Positioning and pushing control can be selected; Possible to hold the actuator when pushing the rod to a workpiece, etc;
  • Positioning repeatability: ±0.02 mm or less;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued);;Series LEYG AC Servo Motor;
  • High output motor (100/200 W);
  • Improved high speed transfer ability;
  • High acceleration/deceleration compatible (5,000mm/S2);
  • Pulse input type;
  • With internal absolute encoder;
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
    • Additional Information
    Size:
    40
    Bearing Type:
    Ball Bushing Bearing
    Motor Mounting Position:
    In-line
    Motor Type:
    Step Motor (Servo 24 VDC)
    Lead:
    Size16:5mm,Size25:6mm,Size32/40:8mm
    Stroke:
    Stroke 100 mm
    Motor Option:
    With Lock
    Guide Option:
    Without Option
    Actuator Cable Type/Length:
    Robotic Cable 5 m
    Communication Protocol:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis Specification:Standard
    Mounting:
    Screw Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Plug Connector
