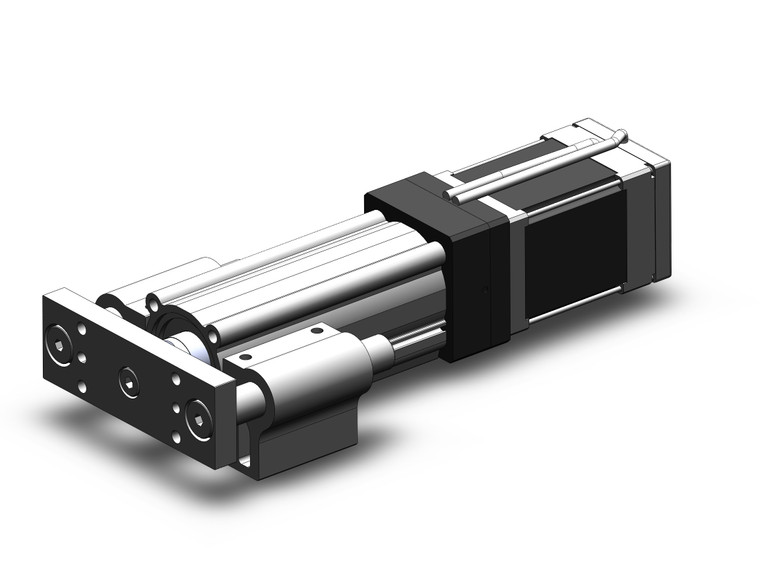

SMC LEYG40MDB-30 LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG40MDB-30 LEYG Series Electric Actuator is a versatile and high-performance solution designed for precision and efficiency in automation applications. This actuator features a compact integration of guide rods, providing exceptional lateral load resistance and high non-rotating accuracy. It is engineered to handle lateral end loads up to five times greater than traditional rod types, particularly in size 25 with a 100mm stroke. The LEYG Series is compatible with both sliding and ball bushing bearings, making it suitable for various applications requiring moment load and stopper capabilities. With speed control and positioning options of up to 64 points, this actuator offers flexibility in operation. Users can select between positioning and pushing control, with the ability to hold the actuator in place when the rod is pushed against a workpiece, ensuring precise and repeatable positioning with an accuracy of ±0.02 mm or less. This actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEYG Series also features a high output AC servo motor, available in 100W or 200W, which enhances high-speed transfer capabilities and supports high acceleration and deceleration up to 5,000mm/S². The pulse input type motor is equipped with an internal absolute encoder for precise control. Compatible drivers for this actuator include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. The SMC LEYG40MDB-30 is an ideal choice for applications demanding high precision, reliability, and adaptability in motion control.
