Description

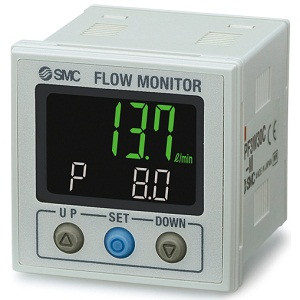

LFE0, Digital Flow Monitor, 2-Screen 3-Color, IP65, for LFE Sensors
LFE0 is a monitor with display for the LFE remote flow sensors. The sensor and monitor can be located up to 3m apart using LFE s optional cable. View the sensor s measured value in the primary screen, while viewing a variety of secondary data in the sub-screen, including switch set point values, an accumulation quantity, or a peak or bottom value. Alternately, assign a text description for the sensor s line or location. Two outputs are available, including two switch signals, or a switch and analog signal. Choose between metric or Imperial display units. A panel mount adapter is also available, as well as connector options. LFE0 is IP65 rated (front panel only), and CE and RoHS compliant.
- Flow ranges (lpm): 0.4-24.0, 2.0-120.0, 4-240 (selectable from LFE ranges)- Power supply voltage: 24 VDC
- Switch output modes: Hysteresis, window comparator, accumulation set point, accumulation pulse
- Accumulated flow range: 999,999,999 L
- Accuracy: 0.5% F.S.
- Repeatability: 0.5% F.S.
-
