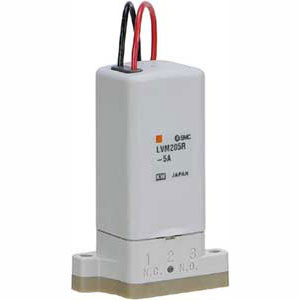

SMC LVM20R3-5C1N Chemical Valve, 2 Port

(No reviews yet) Write a Review
SKU:
LVM20R3-5C1N
Condition:
New
Availability:
In stock: 14
Symbol:
20R3 (Base Mounted, 2 Port, N.C., Port 1 IN, Port 2 OUT)
Function:
Standard
Voltage:
5 (24VDC)
Wetted Part Material:
C (Plate= PEEK
Diaphragm:
Kalrez)
Sub-plate Material/Port Size:
1N (NPT1/8, PVDF)
Lead Wire Length:
300mm
CE Compliant:
None
  • SMC LVM20R3-5C1N chemical valve
  • SMC LVM20R3-5C valve, chemical, base mounted, LVM CHEMICAL VALVE, 2 PORT
$99.70

Description

series lvm is a compact, direct acting, 2/3 port solenoid valve for chemicals. the unique construction reduces residual liquid to a minimum. superior resistance to chemicals requires less maintenance. service life (based on smc test conditions) is 10 million cycles or more.

  • orifice diameter: 2mm
  • power-saving circuit available
  • 2 port n.c. or n.o. types; 3 port universal type
  • diaphragm choice of epdm, fkm or kalrez?
  • wetted part material: peek (body/plate)


autocad file
