SMC MA310-YNM5-R5 Gripper
- SKU:
- MA310-YNM5-R5
- Condition:
- New
- Positioning Method:
- 1 (Ball Coupling)
- Operation:
- 0 (Single Acting)
- Electrical Entry:
- N (w/o Electric Specifications)
- Robot Adapter:
- R5 (Applicable Shaft Diameter 20)
Description

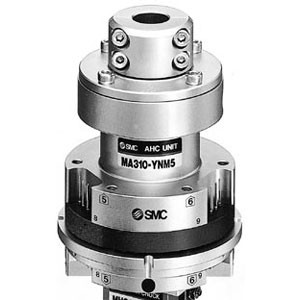

MA3, AHC Unit, Auto Hand Changing System
The Auto Hand Changing (AHC) system, coupled with a tool adaptor, can be quickly linked and interchanged with either a standard or high precision pneumatic gripper. It is very versatile and can be integrated into a flexible manufacturing system (FMS) making the AHC an effective 2-in-1 gripper component. The MA3 load bearing unit has a max. transportable mass of 5 kg, with a built-in failsafe mechanism for drop prevention when there is loss of air pressure. Paired with the tool adaptor, it can link with two types of grippers.
- Auto hand changing system
- Load capacity: 5kg
- Positioning method: ball or curvic coupling
- Operation method: single or double acting
- Available with robot adaptor
-
