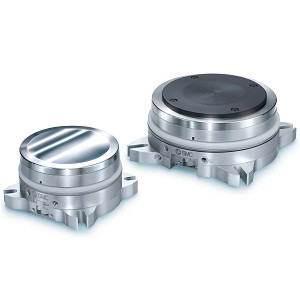

SMC MACM10-50U-X131 MACM Series Centering Unit Corresponding To The Electronics Industry

SMC MACM10-50U-X131 MACM Series Centering Unit Corresponding To The Electronics Industry

SMC
SKU:
MACM10-50U-X131
Availability:
Contact us to confirm availability and lead times.
$1,666.00
Condition:
New
Current Stock:
Description

MACM Series Centering Unit Corresponding To The Electronics Industry

  • Alignment and positioning of transferred workpieces;
  • Contributes to space saving on conveyor lines;
  • Table; Max. allowable load weight: 1000 kg (MACM10); Workpieces can be moved in any direction: forward/backward,; right/left, at an angle, and even rotated (360º).; Ball bearings allow for smooth operation.; Table centering accuracy ±1 mm or less (Workpiece not loaded); Table center movable range Max. ø100 mm (MACM10-50)
    • Additional Information
    Max. Allowable Load Weight:
    10KN
    Stroke:
    Stroke 50 mm
    Table Option:
    Ultra High Molecular Weight Polyethylene
    Sensor Option:
    Unsupported
    Vacuum Port:
    No
