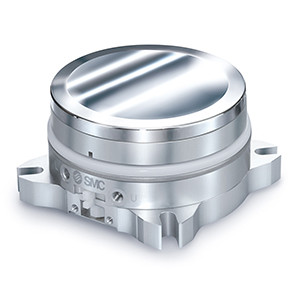

SMC MACM4-20UPV-X131 gripper machine centering unit

SMC MACM4-20UPV-X131 MACM Series Centering Unit Corresponding To The Electronics Industry

SMC
SKU:
MACM4-20UPV-X131
Availability:
Contact us to confirm availability and lead times.
$406.00
Condition:
New
Current Stock:
Description

MACM Series Centering Unit Corresponding To The Electronics Industry

  • Alignment and positioning of transferred workpieces;
  • Contributes to space saving on conveyor lines;
  • Table; Max. allowable load weight: 1000 kg (MACM10); Workpieces can be moved in any direction: forward/backward,; right/left, at an angle, and even rotated (360º).; Ball bearings allow for smooth operation.; Table centering accuracy ±1 mm or less (Workpiece not loaded); Table center movable range Max. ø100 mm (MACM10-50)
    • Additional Information
    Max. Allowable Load Weight:
    4KN
    Stroke:
    Stroke 20 mm
    Table Option:
    Ultra High Molecular Weight Polyethylene
    Sensor Option:
    Location Of Sensor Mounting Bolts:Port Side
    Vacuum Port:
    Yes
