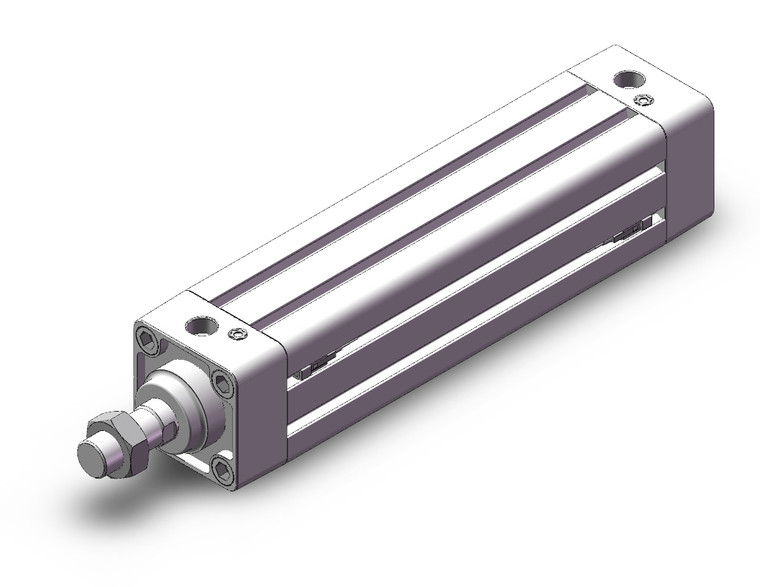

SMC MDB1B50-200Z-M9PWSDPC MB1-Z Series Square Tube Type Air Cylinder
SMC
$287.00
The SMC MDB1B50-200Z-M9PWSDPC MB1-Z Series Square Tube Type Air Cylinder is designed for efficiency and versatility. This air cylinder is 10% lighter for strokes between 50-100, thanks to the innovative redesign of the rod and head covers. It offers the flexibility to mount small auto switches on four different surfaces, enhancing its adaptability in various applications. Additionally, the cylinder features an optional fastener on the auto switch mounting groove, providing effective dust prevention. Equipped with an auto switch, this model is part of the MDB1 series, which includes MDB1, MDB1W, and MDB1K variants, ensuring reliable performance and ease of integration into your pneumatic systems.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 200 mm
- Suffix For Cylinder:
- None Rod Boot,Air Cushion
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- None Rod Boot,Air Cushion
- Accessories1:
- No Bracket
- Accessories2:
- No Bracket
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
