Description

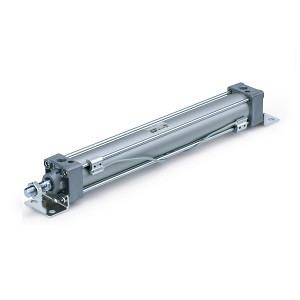

M(D)B-Z, Air Cylinder, Double Acting, Single Rod
The MB single rod, double acting, light weight, medium duty tie rod cylinder. Available bore sizes range from 32mm to 125mm. The standard air cushion utilizes a floating cushion seal to eliminate piston rod bouncing. Also available with a rubber end of stroke cushion instead of air cushion.
- Lighter weight- Bore Sizes: 32, 40, 50, 63, 80, 100, 125
- Mounts: basic, axial foot, rod or head flange, single or double clevis and center trunnion
- Variety of switches
- RoHS compliant
-
Additional Information
Manufacturer Part #: |
MDBB50-125Z |
Mounting: |
Basic |
Bore Size: |
50mm |
Lead or Prewired Connector: |
0.5m [Or None in the Case of No Switch] |
Stroke: |
125mm |
Auto Switch: |
No Switch |
Magnet: |
Built-in |
Cushion: |
Rod Boot None |
Rod End Bracket: |
None |
Pivot Bracket: |
None |
