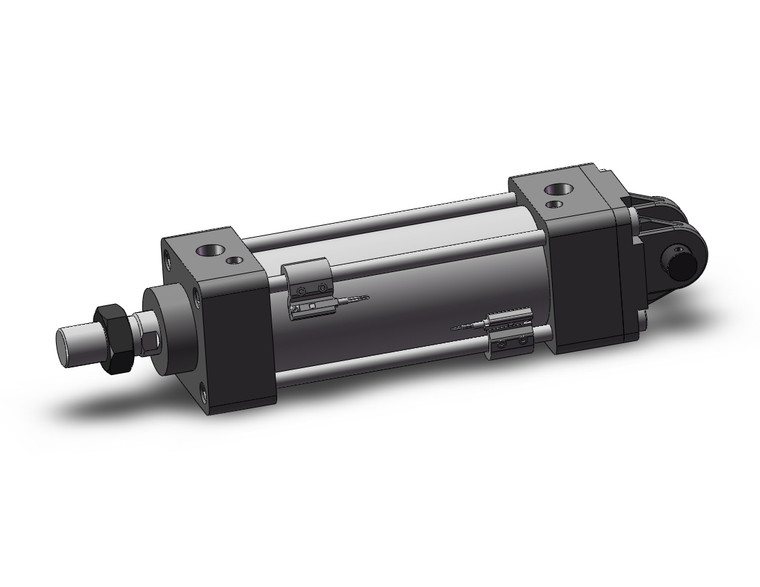

SMC MDBD50-100Z-A93L MB-Z Series Air Cylinder
SMC
$260.50
The SMC MDBD50-100Z-A93L MB-Z Series Air Cylinder is a cutting-edge pneumatic solution designed for efficiency and versatility. This air cylinder boasts a reduced weight, achieved by innovatively reshaping the rod cover and head cover, making it up to 10% lighter than previous models. It offers the convenience of part numbers that include rod end brackets and/or pivot brackets, eliminating the need to order these components separately. Additionally, the cylinder is equipped with an auto switch, compatible with the MDB-Z series, including MDB, MDBW, MDBK, MDBKW, MDBB, and MDBQ models. Ideal for applications requiring reliable and lightweight pneumatic actuation.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Double Clevis Style
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 100 mm
- Suffix For Cylinder:
- None Rod Boot,Air Cushion
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- None Rod Boot,Air Cushion
- Accessories1:
- No Bracket
- Accessories2:
- No Bracket
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
