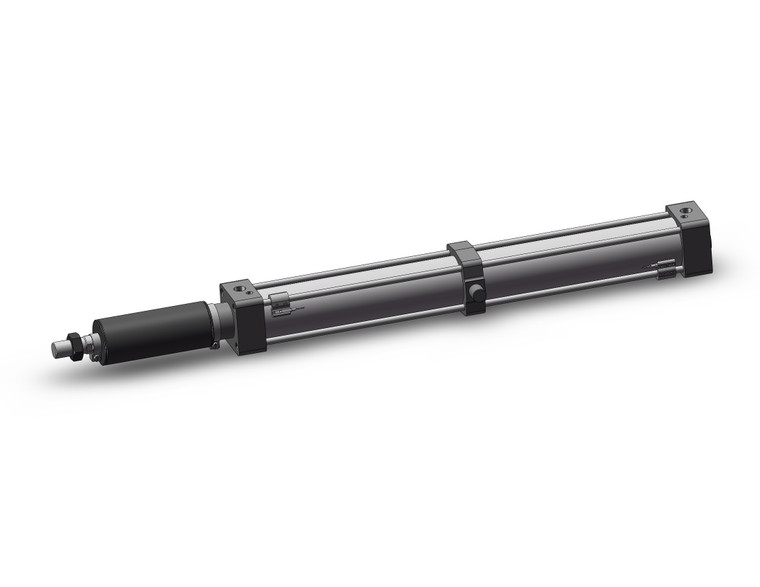

SMC MDBT50TN-450JZ-M9PL MB-Z Series Air Cylinder
SMC
$432.80
Introducing the SMC MDBT50TN-450JZ-M9PL MB-Z Series Air Cylinder, a cutting-edge solution designed to enhance your pneumatic systems. This air cylinder is part of the renowned MB-Z Series, known for its innovative design and superior performance.
Key Features:
- **Lightweight Design**: Experience up to 10% weight reduction thanks to the re-engineered shape of the rod cover and head cover, making it easier to handle and install.
- **Integrated Bracket Options**: Simplify your setup with part numbers that include rod end and/or pivot brackets, eliminating the need for separate bracket orders.
- **Auto Switch Compatibility**: Enhance functionality with the auto switch feature, compatible with various models in the MDB-Z series, including MDB, MDBW, MDBK, MDBKW, MDBB, and MDB Q.
Upgrade your pneumatic applications with the SMC MDBT50TN-450JZ-M9PL MB-Z Series Air Cylinder, where efficiency meets innovation.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Center Trunnion
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 450 mm
- Suffix For Cylinder:
- Rod Boot:Nylon Tarpaulin,Air Cushion
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- None Rod Boot,Air Cushion
- Accessories1:
- No Bracket
- Accessories2:
- No Bracket
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
