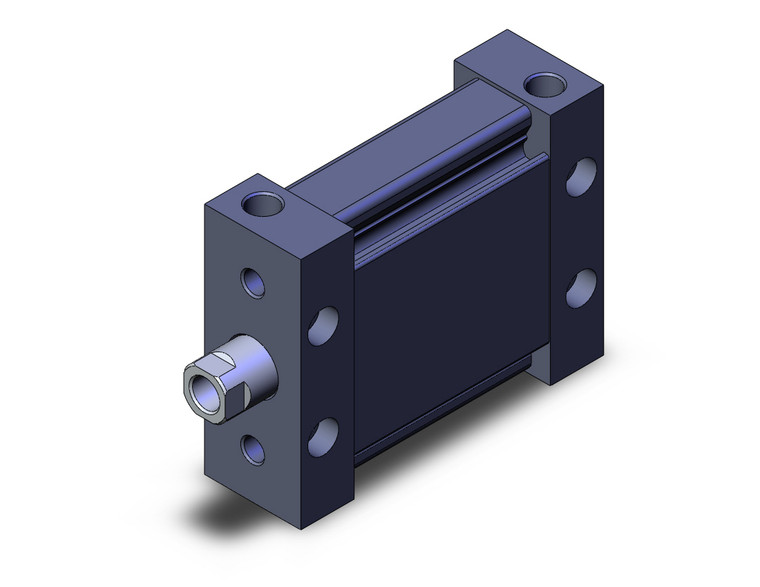

SMC MDUB32-25DMZ Compact Cylinder
- SKU:
- MDUB32-25DMZ
- Condition:
- New
- Availability:
- In stock: 4
Description

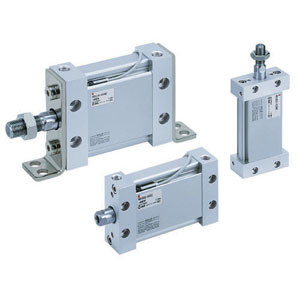

M(D)U-Z Plate Cylinder, Double Acting, Single Rod w/Auto Switch Mounting Groove
The MU plate single rod, double acting, cylinder, with its elliptical design, provides a low profile while maintaining force output. The MU cylinder can eliminate the need for higher operating pressures that may be required for typical flat cylinders. The oval piston shape also provides an intrinsic non-rotating function without having to use a rod with flats, offering increased bearing and seal life.
-
- Double acting, single rod plate cylinder- Possible to mount without brackets
- Auto switch mounting grooves prevent projection of auto switches
- Auto switches can be mounted in 4 directions
- Strokes up to 300mm
Additional Information
Magnet: |
D (Built-in) |
Mounting: |
B (Basic) |
Size: |
32 (Equiv. 32 Piston Area) |
Port Thread Type: |
M thread= 25, Rc= 32 to 63 |
Stroke: |
25mm |
Rod End: |
M (Male Thread) |
Auto Switch: |
None |
Lead Wire or Prewired Connector: |
0.5m (Or None in the Case of No Switch) |
Number: |
2 pcs. (Or None in the Case of No Switch) |
