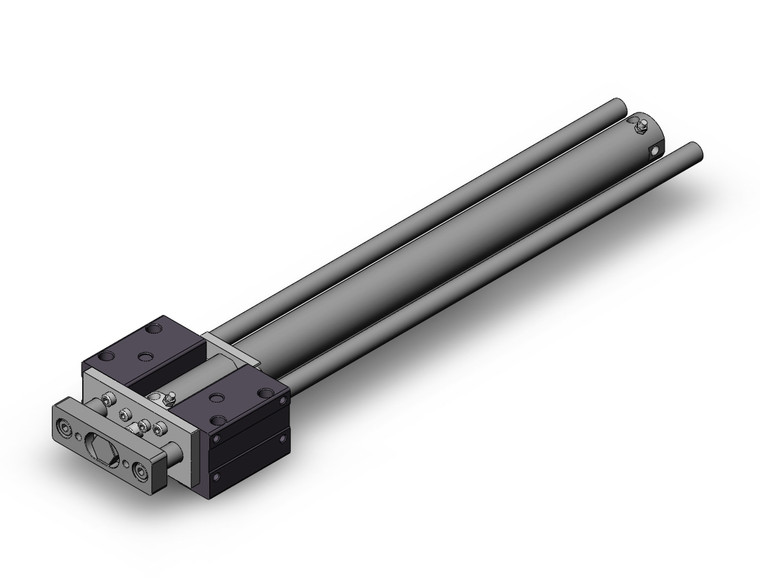

SMC MGCLB32-450 MGC Series Guide Cylinder Compact Type
SMC
$422.55
SMC MGCLB32-450 - MGC Series Compact Guide Cylinder, Ball Bushing, 32mm Bore, 450mm Stroke
The SMC MGCLB32-450 provides precision-guided linear motion with a 32mm bore and 450mm stroke. Part of the MGC Series compact external guided cylinder lineup, this actuator features ball bushing bearings and rear plate (b) mounting for reliable pneumatic performance.
Key Features & Specifications
- Ball bushing (L-type) bearings - precision linear guidance with consistent, low-friction travel
- External guide rods - protect actuator seals from lateral loads, extending operational lifespan
- Air cushions standard - provide maximum kinetic energy absorption at stroke end for machine protection
- Non-rotating accuracy: ±0.05° (32mm bore)
- Bore Size: 32mm | Stroke: 450mm | Rear Plate (B) Mount
Typical Applications
Designed for pick-and-place, pressing, and guided transfer operations requiring precise, non-rotating guided linear motion in a compact package.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- M5X0.8,Rc
- Cylinder Stroke:
- Standard Stroke 450 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
