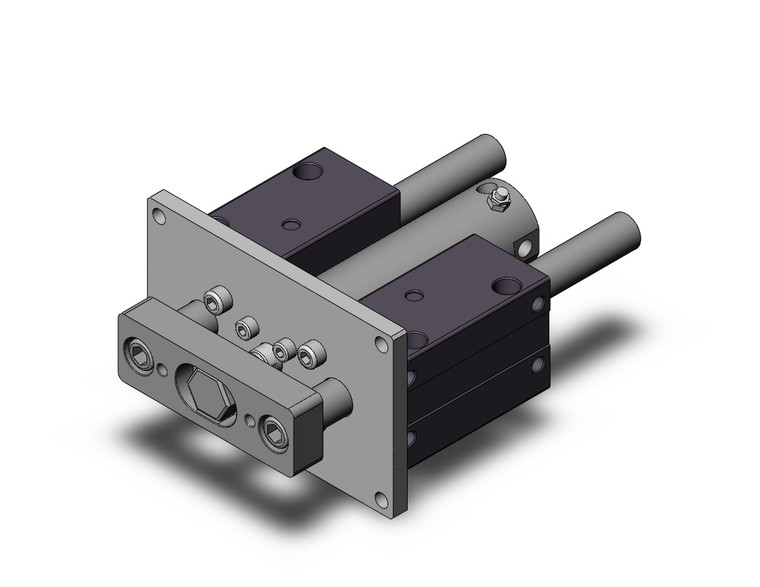

SMC MGCLF50-100 MGC Series Guide Cylinder Compact Type
SMC
$604.85
SMC MGCLF50-100 - MGC Series Compact Guide Cylinder, Ball Bushing, 50mm Bore, 100mm Stroke, Flange (F) Mount
The SMC MGCLF50-100 is engineered for precise linear transfer with a 50mm bore and 100mm stroke. Part of the MGC Series compact external guided cylinder lineup, this actuator features ball bushing bearings and flange (f) mounting for reliable pneumatic performance.
Key Features & Specifications
- Ball bushing (L-type) bearings - stable travel resistance for accurate positioning throughout the stroke
- External guide rods - deflect lateral forces away from rod seals for reliable high-cycle performance
- Air cushions standard - reduce end-of-stroke impact, protecting both workpieces and tooling
- Non-rotating accuracy: ±0.04° (50mm bore)
- Bore Size: 50mm | Stroke: 100mm | Flange (F) Mount
Typical Applications
Designed for automated loading, sorting, and guided insertion processes requiring precise, non-rotating guided linear motion in a compact package.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Flange Style
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- M5X0.8,Rc
- Cylinder Stroke:
- Standard Stroke 100 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
