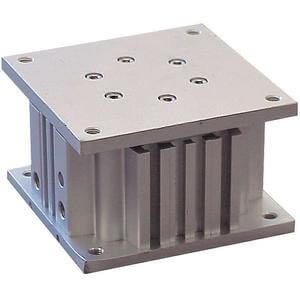

SMC MGF63TN-100 Guided Cylinder

(No reviews yet) Write a Review
SKU:
MGF63TN-100
Condition:
New
Bore Size:
63mm
Port Thread:
TN (NPT)
Stroke:
100mm
Auto Switch:
No Switch
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
  • SMC MGF63TN-100 cylinder, guide
  • SMC MGF63TN-100 cylinder, guide
  • SMC MGF63TN-100 cylinder, guide
  • SMC MGF63TN-100 cylinder, guide
  • SMC MGF63TN-100 cylinder, guide
  • SMC MGF63TN-100 Guided Cylinder
  • SMC MGF63TN-100 Guided Cylinder
  • SMC MGF63TN-100 Guided Cylinder
  • SMC MGF63TN-100 Guided Cylinder
$809.95
