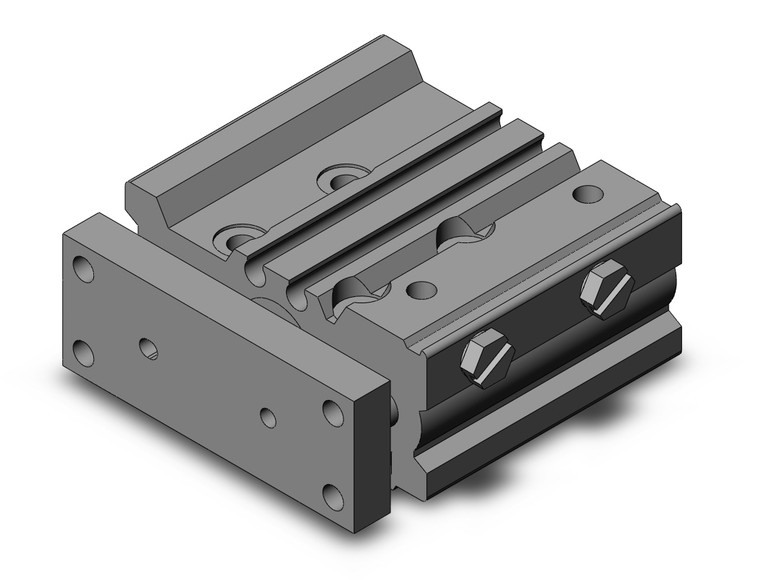

SMC MGPA12-20Z Guided Cylinder
- SKU:
- MGPA12-20Z
- Condition:
- New
- Availability:
- In stock: 34
- Bore Size:
- 12mm
- Port Thread:
- Bore 12-16= M5x0.8
- Bore 20-100:
- Rc
- Stroke:
- 20mm
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
MGPA-Z, Guide Rod, High Precision Ball Bushing Cylinder
The MGPA is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The press fitted high precision ball bushing results in a non-rotating accuracy of +/-0.01 across all bore sizes. The stroke adjustment option (XC8, XC9) can be either on the extend or retract cycle and has an adjustment range up to 50 mm.
-
- Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm- Non-rotating accuracy of +/-0.01 across all bore sizes.
- Adjustable stroke option, extent cycle (XC8)
- Adjustable stroke option, retract cycle (XC9)
- Rubber bumpers as standard
- Auto switch capable
-
