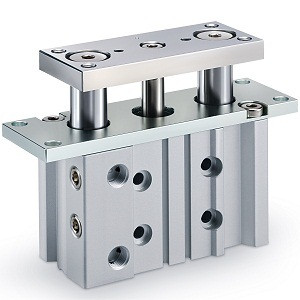

SMC MGPAF12-40Z Guided Cylinder
- SKU:
- MGPAF12-40Z
- Condition:
- New
- Bearing Type:
- A (High Precision Ball Bushing)
- Bore Size:
- 12mm
- Port Thread:
- Bore 12-16= M5x0.8
- Bore 20-100:
- Rc
- Stroke:
- 40mm
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
MGPAF-Z, High Precision Guided Cylinder with Flange, Ball Bushing Bearing
The MGPAF-Z is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The press fitted high precision ball bushing results in a non-rotating accuracy of +/-0.01 across all bore sizes. It is available with a plate side flange.
-
- Bore size: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm)- Strokes: 10mm through 400mm, depending upon bore size
- High precision ball bushing bearing type
- Auto switch capable
- Available with plate side flange
-
