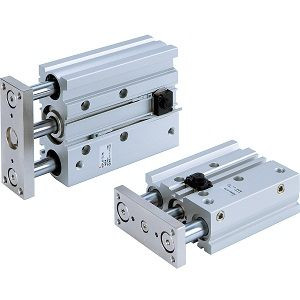

SMC MGPL63N-250-HL-M9PSDPC MGP Series Compact Guide Cylinder With End Lock
SMC
$971.55
The SMC MGPL63N-250-HL-M9PSDPC MGP Series Compact Guide Cylinder With End Lock is engineered for efficiency and precision. This innovative cylinder features a weight reduction of up to 24% thanks to its shorter guide rod and thinner plate, making it ideal for applications where space and weight are critical. The design minimizes the space required between the bottom of the cylinder body and your equipment by shortening the guide rod by up to 22 mm. Additionally, it supports the direct mounting of round type and magnetic field resistant auto switches without the need for a spacer, enhancing its versatility and ease of use in various industrial settings.
- Bearing Type:
- Ball Bushing Bearing
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 250 mm
- Lock Position:
- Head End Lock
- Manual Release Type:
- Locking Type
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
