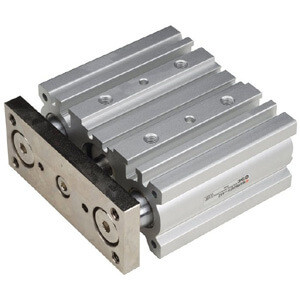

SMC MGPM100R-100Z Mgp-Z Cylinder

MGPM*R/V-Z, Standard Guided Water Resistant Cylinder, Slide Bearing

The MGPM Water Resistant cylinder is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The water resistant option includes rod wipers on the guide rods and piston rod. This option is ideal for application exposed to coolant and water splashing.

- Bore sizes: 20, 25, 32, 40, 50, 63, 80, 100
- Wiper options of NBR or FKM material
- Non-rotating accuracy: +/-0.07 (20 25 mm bore)
- Non-rotating accuracy: +/-0.06 (32 40 mm bore)
- Non-rotating accuracy: +/-0.05 (50 63 mm bore)
- Non-rotating accuracy: +/-0.04 (80 100 mm bore)
- Rubber bumpers as standard
- Auto Switch capable
-

Series Catalog
