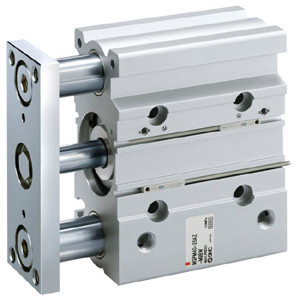

SMC MGPM50-25AZ-M9PSAPC Guided Cylinder

(No reviews yet) Write a Review
SKU:
MGPM50-25AZ-M9PSAPC
MPN:
MGPM50-25AZ-M9PSAPC
Condition:
New
  • SMC MGPM50-25AZ-M9PSAPC Guided Cylinder
  • SMC MGPM50-25AZ-M9PSAPC Guided Cylinder
  • SMC MGPM50-25AZ-M9PSAPC Guided Cylinder
  • SMC MGPM50-25AZ-M9PSAPC Guided Cylinder
$437.55

Description

mgp compact guide cylinder nm 50mm mgp slide bearing cyl, guide w/air cush,slide br
View AllClose

Related Products

Related Products

<h2>MGP-AZ, Standard Guided Cylinder with Air Cushion</h2><p><h3>The MGP-AZ is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The air cushions allow the guided cylinder to absorb nearly three times as much kinetic energy as standard rubber bumpers while suppressing noise and vibration at the stroke end. The (A) press fitted high precision ball bushing is suitable for minimizing the actuator s plate displacement. The (L) high precision ball bushing allows for smooth operation that ensures stable travel resistance, suitable for pushing and lifting applications. The (M) carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts, suitable for stopping applications.<br>- </h3>- Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80, 100 mm<br>- (A) Press fitted high precision ball bushing non-rotating accuracy: +/-0.01 (all bore sizes)<br>- (L) Ball bushing non-rotating accuracy: +/-0.05 (100 mm) to +/- 0.10 (16 mm)<br>- (M) Slide bearing non-rotating accuracy: +/-0.04 (100 mm) to +/- 0.08 (16 mm)<br>- Air cushions as standard<br>- Auto switch capable<br>- <p><a href="https://content2.smcetech.com/pdf/MGP.pdf" target="_blank">Series Catalog</a> <h2>MGP-AZ, Standard Guided Cylinder with Air Cushion</h2><p><h3>The MGP-AZ is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The air cushions allow the guided cylinder to absorb nearly three times as much kinetic energy as standard rubber bumpers while suppressing noise and vibration at the stroke end. The (A) press fitted high precision ball bushing is suitable for minimizing the actuator s plate displacement. The (L) high precision ball bushing allows for smooth operation that ensures stable travel resistance, suitable for pushing and lifting applications. The (M) carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts, suitable for stopping applications.<br>- </h3>- Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80, 100 mm<br>- (A) Press fitted high precision ball bushing non-rotating accuracy: +/-0.01 (all bore sizes)<br>- (L) Ball bushing non-rotating accuracy: +/-0.05 (100 mm) to +/- 0.10 (16 mm)<br>- (M) Slide bearing non-rotating accuracy: +/-0.04 (100 mm) to +/- 0.08 (16 mm)<br>- Air cushions as standard<br>- Auto switch capable<br>- <p><a href="https://content2.smcetech.com/pdf/MGP.pdf" target="_blank">Series Catalog</a>

SMC MGPM25-50AZ-M9PSAPC Mgp-Z Cylinder

$338.10
MGP-AZ, Standard Guided Cylinder with Air CushionThe MGP-AZ is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and...
MGPM25-50AZ-M9PSAPC
SMC MGPM16-25AZ-M9PSAPC guided cylinder mgp-z cylinder

SMC MGPM16-25AZ-M9PSAPC Guided Cylinder

$269.50
MGP-AZ, Standard Guided Cylinder with Air CushionThe MGP-AZ is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and...
MGPM16-25AZ-M9PSAPC
