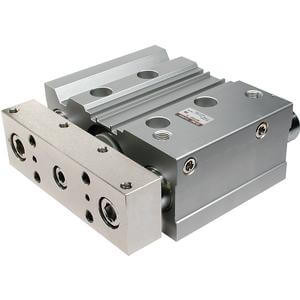

SMC MGPS80N-50-A93L Guided Cylinder

The MGPs is a compact body actuator integrated with internal oversized guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts resulting in a non-rotating accuracy of +/-0.05 for 50 mm bore and a non-rotating accuracy of +/-0.04 for 80 mm bore. Compared to the standard MGP, the MGPS increases anti-lateral load by 10%, increases eccentric load resistance by 25% and increases impact load resistance by 140%.
