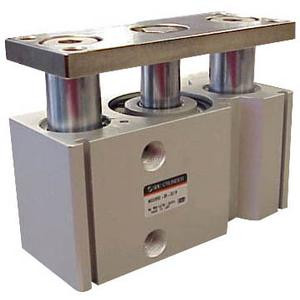

SMC MGQL25TF-20 Guided Cylinder
- SKU:
- MGQL25TF-20
- Condition:
- New
- Bore Size:
- 25
- Thread:
- TF (G)
- Stroke:
- 20mm
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
MGQL, Compact Guided Cylinder, Ball Bushing Bearing
The MGQL is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The high precision ball bushing allows for smooth operation that ensures stable travel resistance. Non-rotating accuracy ranging from +/-0.05 for 100 mm bore to +/-0.10 for 12 mm bore.
-
- Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm- High temperature option, up to 150 C or 302 F (XB6)
- Rubber bumpers as standard
- Auto switch capable
-
