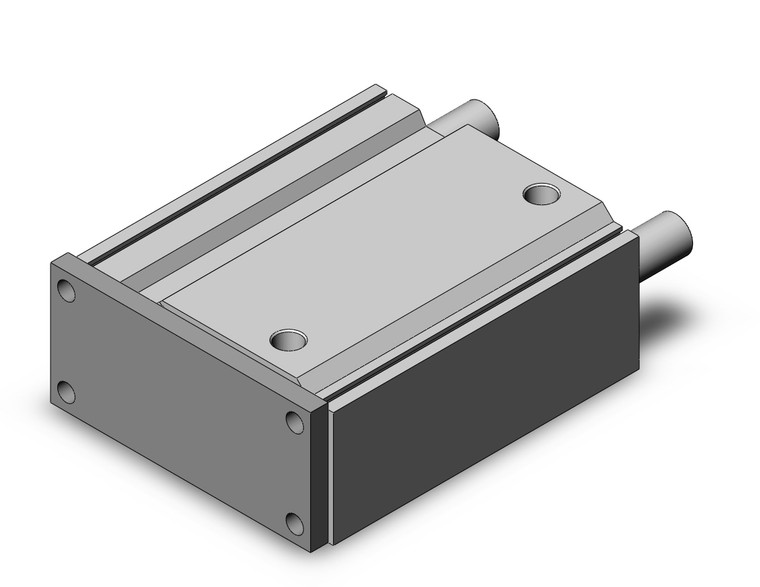

SMC MGQL63TN-125 Guided Cylinder
- SKU:
- MGQL63TN-125
- Condition:
- New
- Bore Size:
- 63
- Thread:
- TN (NPT)
- Stroke:
- 125mm
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
the solution for a linear-actuator subject to high loads. ideal for material handling applications. two basic models include a self-lubricating slide bushing and a linear ball bearing style. the 100mm slide bushing model can stop a load of 3,000 lbs. traveling at 55ft/min, or smoothly lift a centered load of 1,000 lbs. with a 40% safety factor. the overall package is very compact, and pre-tapped mounting holes ensure easy attachment of fixtures. mounts on side or bottom. the mgq offers bore sizes from 12 to 100mm and is switch capable.

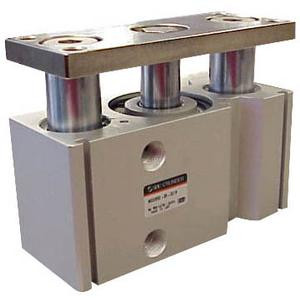

- compact guide cylinder
- ball bushing bearing
- bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 *
- strokes from 10mm through 200mm depending upon bore size
- variety of switches and a variety of lead wire lengths
