SMC MGQM20-175 Guided Cylinder
- SKU:
- MGQM20-175
- Condition:
- New
- Availability:
- In stock: 2
- Bore Size:
- 20
- Thread:
- Bore 12-16= M5x0.8
- Bore 20-100:
- Rc
- Stroke:
- 175mm
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description

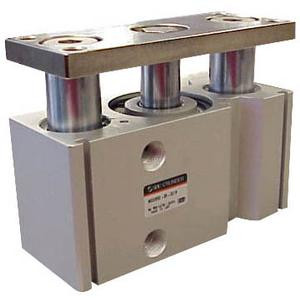

MGQM, Compact Guided Cylinder, Slide Bearing
The MGQM is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts. Non-rotating accuracy ranging from +/-0.04 for 100 mm bore to +/-0.08 for 12 mm bore.
-
- Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm- High temperature option, up to 150 C or 302 F (XB6)
- Rubber bumpers as standard
- Auto switch capable
-
